Top-Rated Side Sealer Shrink Wrap Machine – BF Series (High Speed & Seamless Industrial Wrapping)
Have a thorough view of the Machinery.

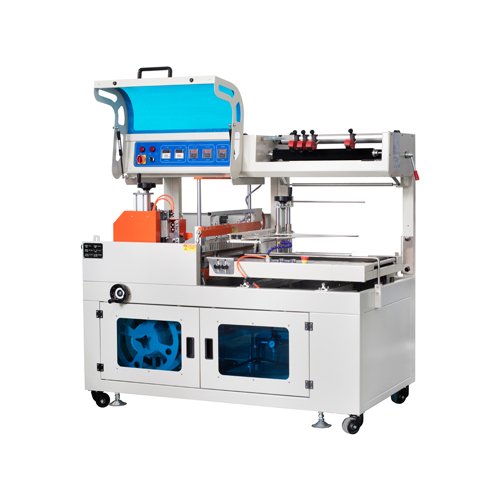

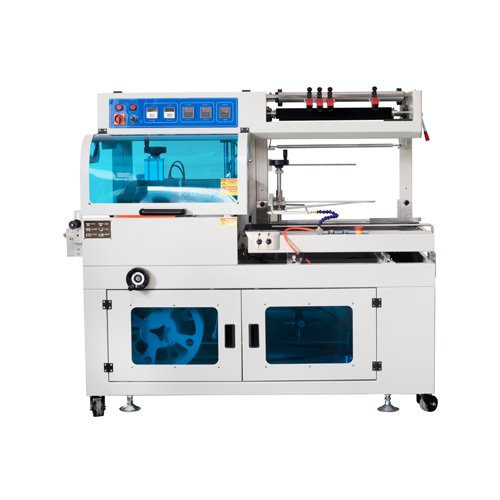

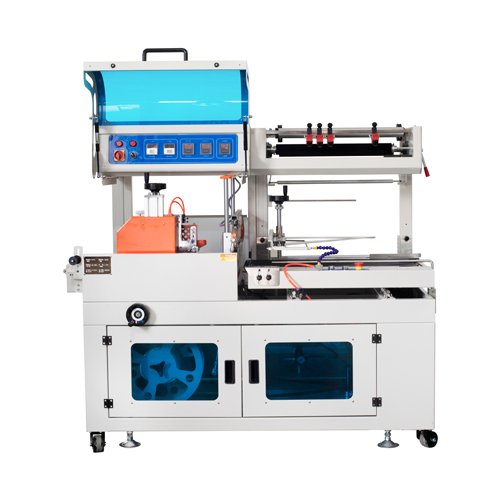

BF – SERIES Side Sealer Machine
AUTOMATIC SIDE SEALER MACHINE
The BF-450 edge seal cutting machine is designed for automatic online packaging and sealing of various products. It features a vertical drive for the sealing part and a constant temperature knife for precise sealing and cutting. This machine can operate in two modes: automatic feeding or manual feeding, allowing for flexibility in production.
Key Features of BF Series Side Sealer Machine:
- Vertical Sealing: The machine offers vertical closure, accommodating products of any length without limitation.
- High Packing Speed: Capable of packaging up to 20-40 items per minute, enhancing production efficiency.
- Precision Control: Sealing and cutting are managed by a servo motor, ensuring accurate positioning and high-quality sealing lines.
- Safety Features: The sealing and cutting knife includes an automatic protection function to prevent false cuts, safeguarding your packing materials.
|

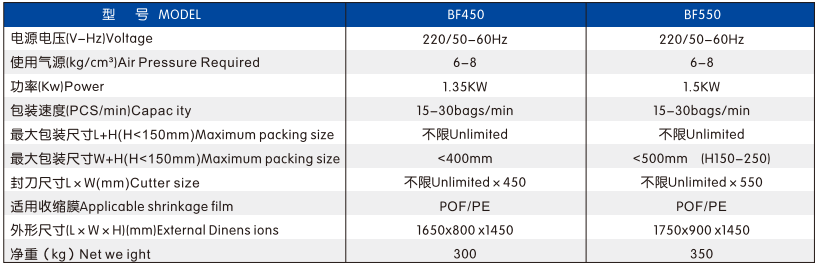

MODEL |
BF-450 |
BF-550 |
|---|---|---|
|
Power Supply Voltage ( V-Hz) |
220/50-60Hz |
220/50-60Hz |
|
Air Pressure Required |
6-8 kg/cm³ |
6-8 kg/cm³ |
|
Sealing Power (W) |
1.35KW |
1.5KW |
|
Capacity |
15-30 bags/min |
15-30 bags/min |
|
Maximum packing size L+H (H<150mm) |
Unlimited |
Unlimited |
|
Maximum packing size W+H (H<150mm) |
<400 mm |
<500 mm (H150~250) |
|
Cutter size |
Unlimited × 450 mm |
Unlimited × 450 mm |
|
Applicable shrinkage film |
POF/PE |
POF/PE |
|
External Dimension (L×W×H)(mm) |
1650 x 800 x 1450 |
1750 x 900 x 1450 |
|
Net weight |
300 kg |
350 kg |
Technical Specifications of Side Sealing Shrink Wrap Machine
| Model | BF Series Side Sealer |
| Sealing Type | Continuous Side Sealing |
| Product Length Limit | No Limit (Continuous) |
| Supported Films | POF, PE, PVC |
| Conveyor Speed | Variable (High-Speed) |
| Shrink Tunnel Compatibility | Yes |
| Application | Long products, cartons, multipacks |
The BF Series Side Sealer Shrink Wrap Machine is a high-performance packaging machine engineered for businesses that require fast, clean, and efficient shrink packaging. Unlike traditional L-sealers, this side sealer shrink wrap machine features a continuous sealing system where the product length is not restricted, making it ideal for long or oversized items.
his machine integrates perfectly with a shrink tunnel, delivering uniform heat distribution for crystal-clear shrinking and strong package durability. The system is compatible with POF, PE, and PVC shrink films, giving manufacturers complete film flexibility for multiple product types.
Want to see this machine in action? Visit our Video Library.
Need a High-Speed Side Sealer for Your Packaging Line?
Get machine specs, demo videos, and packaging guidance for the BF Series.
Frequently Asked Questions
What is a BF Series Side Sealer Shrink Wrap Machine?
It is an automatic side sealing packaging machine designed for continuous shrink wrapping, ideal for longer products where traditional L-sealers fall short.
Does the BF Series limit product length?
No. The biggest advantage of the side sealer is that product length is not restricted, making it suitable for long or irregularly shaped items.
Which shrink films are compatible?
It supports POF, PE, and PVC shrink films, offering flexibility for different packaging needs.
What industries use this machine?
It is widely used in food, beverage, cosmetics, electronics, logistics, e-commerce, and retail packaging.
Does it work with shrink tunnels?
Yes, the BF Series is designed to work seamlessly with industrial shrink tunnels for perfect 360-degree shrinking.
